Collimator sight Dong In Optical DT323
+ 4 photo
Overview

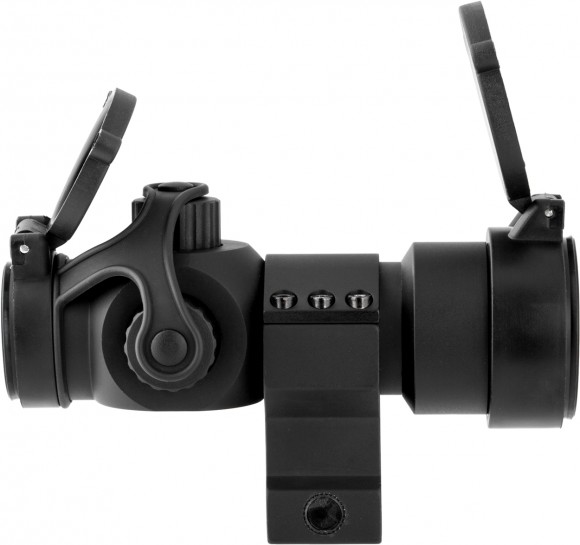

Compact and lightweight collimator sight DT323 from the South Korean optics manufacturer Dong In Optical, designed for use by law enforcement agencies and military units. It is ideally suited for close-range combat, for example in urban conditions, premises, etc. DT323 is a sight of a closed type, structurally simple and reliable. It is powered by one CR2032 lithium battery, which is installed in a sealed battery compartment. There is also a reticle brightness switch, which has 12 positions. It is important to note that the first 3 brightness modes are provided for use in conjunction with night vision sights. There are also flywheels for making corrections, covered with protective caps on the thread (additionally attached to the body to minimize the possibility of their loss). To protect the glasses, the scope is equipped with hinged spring-loaded protective covers. To install the sight on the weapon, the kit includes a removable bracket with a height of 25 mm and a diameter of 30 mm, for the Weaver/Picatinny bar.
Characteristics
| Additional information | Воднонепроницаемый, 11 уровней яркости, рабочий диапазон температур -51° - +71°C |
| Weight, kg | 0,32 |
| Multiplicity (increase), Max | 1 |
| Type | collimator sights |
| Field of view at 100 m | 23,3 |
| Removal of the exit pupil, mm | unlimited |
| Parallax/Focus adjustment | No |
| Dimensions, mm | 132x63x77 |
| Nutrition | 1 CR2032 battery |
| Type of reticle | точка (диаметр-3 MOA) |
| Complete set | защитные крышки, элемент питания CR2032, микрофибра, ключ для внесения поправок, руководство пользователя, пристрелочная мишень |
| Lens diameter, mm | 32 |
| Correction price (1 click) per 100 m | 0.8 cm |
| Producer | Dong In Optical |
| Diameter of rings/Seat | 33 mm |
