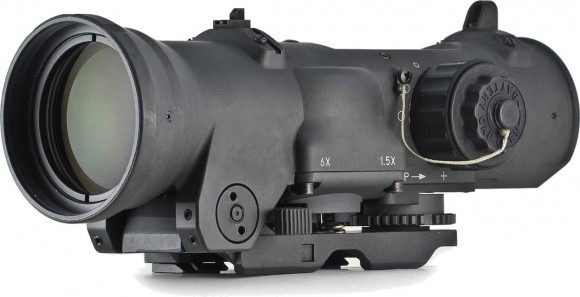

ELCAN SpecterDR 1.5-6x C2 sight, for caliber .308
Overview
The Elcan Specter Dual Role 1x-4x and 1, 5x-6x sights of the Canadian company Raytheon combine a collimator with a wide field of view and a four- or six-fold optical sight that provides accurate targeting of distant targets. The multiplicity is changed with one movement of a special lever. The reticle engraved on the glass, designed for the ballistics of the .223 Rem cartridge or the .308 Win cartridge, has two illumination options: the entire reticle or only the central mark. ELCAN SpecterDR scopes are equally well suited for shooting at both near and distant targets, as well as for quick transfer of fire from one to another.
Characteristics
| Exit pupil diameter, mm | 7 |
| Additional information | Водостойкость прицела – 20 м до 2 часов, ударостойкость - 450 g's |
| Weight, kg | 0,7 |
| Multiplicity (increase), Max | 6 |
| Type | optical sights |
| Illumination of the reticle | there is |
| Multiplicity (increase), Min | 1,5 |
| Blade thickness, mm | 2 |
| Field of view at 100 m | от 16 до 4 метров |
| Removal of the exit pupil, mm | 70 |
| Parallax/Focus adjustment | No |
| Focal plane | the second |
| Dimensions, mm | 184x76x76 |
| Nutrition | lithium battery DL1/3N (3v) (minimum 300 hours at maximum brightness) |
| Type of reticle | CX5395 Illuminated Ballistic |
| Minimum focusing distance, m | 20 |
| Lens diameter, mm | 42 |
| Correction price (1 click) per 100 m | 1.5cm (1/2 MOA) |
| Producer | ELCAN |
| Diameter of rings/Seat | 33 mm |
